UG30 Solid Octagonal Cube 30 kgs/24hrs

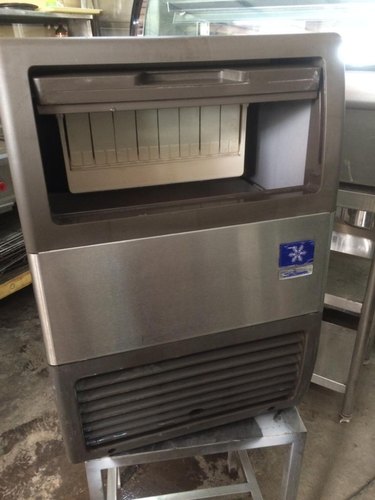

Manitowoc UG30 Ice Machine Detailed Summary (South Africa)
The Manitowoc Sotto UG30 is a compact, undercounter ice machine designed for small businesses, restaurants, bars, cafés, and homes that require a reliable supply of high-quality gourmet ice. Part of Manitowoc’s Sotto series, the UG30 is engineered for efficiency, durability, and ease of use, producing clear, octagonal gourmet ice cubes ideal for premium drinks. Below is a detailed summary of its features, specifications, and benefits based on available information.
Key Features
- Ice Production and Storage:
- Production Capacity: Produces up to 31 kg (68 lbs) of ice per 24 hours under optimal conditions (21°C air, 10°C water). Production may reduce to 25 kg (55 lbs) at higher ambient temperatures (32°C air, 21°C water).
- Storage Capacity: Built-in storage bin holds 5.5 kg (12 lbs) of ice.
- Ice Type: Produces 20g (33x34mm) octagonal gourmet ice cubes, which are crystal-clear, slow-melting, and enhance the presentation of upscale cocktails, spirits, and premium beverages.
- Design and Build:
- Compact Size: Measures 450mm (W) x 475mm (D) x 650mm (H) (excluding levellers), making it ideal for tight spaces like bars, restaurants, offices, or residential settings.
- Material: High-grade stainless steel exterior for durability and corrosion resistance, with a sleek, Euro-style design.
- Plug-and-Play Design: Requires no top or side clearances, allowing flexible installation under counters.
- Whisper-Quiet Operation: Minimizes noise, making it suitable for front-of-house use in customer-facing environments like bars and cafés.
- Hygiene and Maintenance:
- Antimicrobial Protection: Built-in features inhibit bacterial and microbial growth, ensuring clean and safe ice.
- Automatic Cleaning Cycle: Includes a patented cleaning and sanitizing system to maintain hygiene and reduce contamination risks.
- Slide-Out Air Filter: Protects against lint, grease, and dust, simplifying routine maintenance without tools.
- Tool-Free Food Zone: Easy-to-clean design for quick access and maintenance.
- Recommended Maintenance: Monthly condenser cleaning and acid washing/sanitizing every 3 months are advised to maintain performance and ice quality. A water filter is strongly recommended to reduce mineral deposits and extend machine life.
- Performance and Efficiency:
- Redesigned Refrigeration System: Up to 43% more efficient than previous Manitowoc models of similar size, optimizing ice production even in high ambient temperatures (up to 43°C).
- Self-Adjusting Production: Maintains consistent ice output despite varying ambient conditions.
- Refrigerant: Uses CFC-free R-134A for environmentally friendly operation.
- Energy Rating: CEE Tier 1 for energy and water efficiency.
- User-Friendly Features:
Specifications
- Model: Manitowoc UG30 (Sotto Series, air-cooled)
- Ice Type: Octagonal gourmet cube (20g, 33x34mm)
- Ice Production: Up to 31 kg/day (68 lbs) at 21°C air/10°C water; 25 kg/day (55 lbs) at 32°C air/21°C water
- Storage Capacity: 5.5 kg (12 lbs)
- Dimensions: 450mm (W) x 475mm (D) x 650mm (H), excluding levellers
- Weight: 45 kg (99.2 lbs)
- Power Requirements:
- Warranty: 1 years parts, 1 year labor
- Certifications: CE marked, WRAS approved
- Drainage: Requires floor-level gravity drainage; warranty may be voided without professional installation by a qualified plumber or refrigeration mechanic.
Applications
The UG30 is ideal for venues where a small number of large, high-quality ice cubes are preferred, such as:
- Restaurants, bars, cafés, and coffee shops: Enhances premium drink presentation with clear, slow-melting gourmet ice.
- Delis and small businesses: Provides a reliable ice supply for food service or customer beverages.
- Residential settings: Suitable for homes that frequently entertain guests, offering a compact solution for gourmet ice.
- Healthcare facilities and offices: Meets hygiene standards for safe ice production in break rooms or patient areas.
Benefits
- High-Quality Ice: Produces crystal-clear, octagonal gourmet cubes that elevate the aesthetic and quality of beverages, perfect for upscale cocktails and spirits.
- Space-Saving Design: Compact footprint and no clearance requirements make it versatile for small spaces.
- Reliability: Built with high-quality materials and advanced technology for consistent performance in demanding environments.
- Ease of Maintenance: Features like the slide-out air filter, tool-free food zone, and automatic cleaning cycle simplify upkeep.
- Quiet Operation: Minimizes noise disruption, ideal for customer-facing areas.
- Efficiency: Energy and water-efficient design reduces operating costs, with up to 43% improved performance over previous models
